Model |
FGS-400 |
|
|
|
Temperature(℃) |
0~ -18℃ |
||
|
Volume (m³) |
10 |
||
|
Compressor |
model |
QP16 |
|
|
type |
swash plate type |
||
|
displacement (cc/r) |
160 |
||
|
lubricating oil |
Mobil 68 |
||
|
Cooling capacity （W）
|
environmental |
35℃ |
|
|
0℃ |
3650 |
||
|
-18℃ |
2060 |
||
|

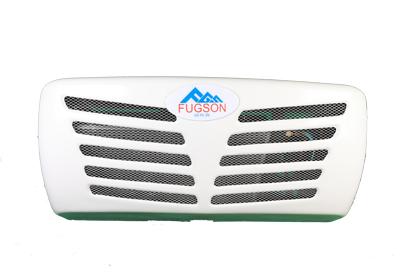

Condenser |
condenser type |
Parallel flow |
|
|
fan type |
axial fan |
||
|
fan number |
1 |
||
|
voltage |
DC 12/24 |
||
|

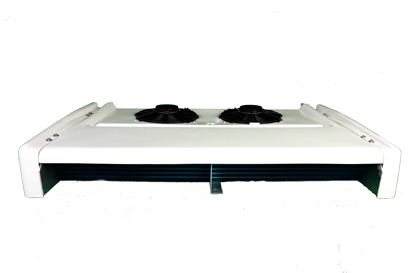

Ultra-thin evaporator
|
evaporator type |
inner screw tube and aluminum fin |
|
|
fan type |
axial fan |
||
|
fan number |
2 |
||
|
voltage |
DC 12/24 |
||
|
Throttle type |
external equalizer expansion valve |
||
|
Refrigerant |
R404A |
||
|
Refrigerant charge amount(kg) |
1.5KG |
||
|
Defrost type |
hot gas defrost (optional) |
||
|
Structure |
split design and engine driven |
||
|
Installation type |
Front-mounted type |
||
|
Dimensions (mm) |
evaporator |
1080*627*220 |
|
|
condenser |
1100*510*340 |
||
|
Weight（kg） |
70 |
||
