Product Description

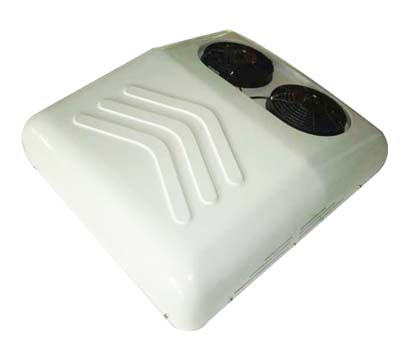

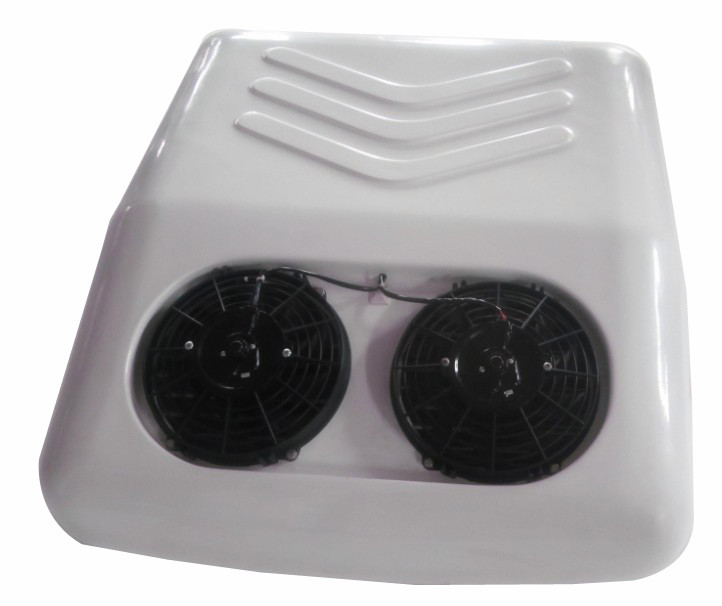

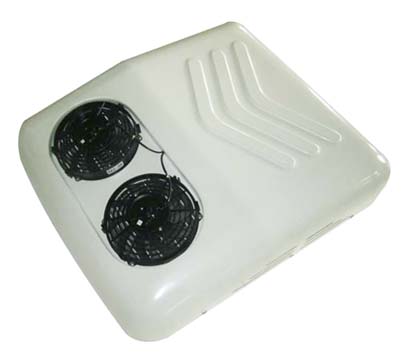

P-20B Electric Truck Air Conditioner for Cabins and Motorhome:

Cab parking cooling , no need to intervene in the vehicle engine，solution by P-Trip

The electric truck air conditioner P-20B with roof mounted , it is electric ac unit and driven by the battery of truck , suit for truck , trailer , excavator , caravan and rv. We produce is generally 15 degrees ,and the most comfortable temperature for the human body in an air-conditioned environment is 25 degrees. So please don't worry the well application of the dc powered truck air conditioner under harsh environment .

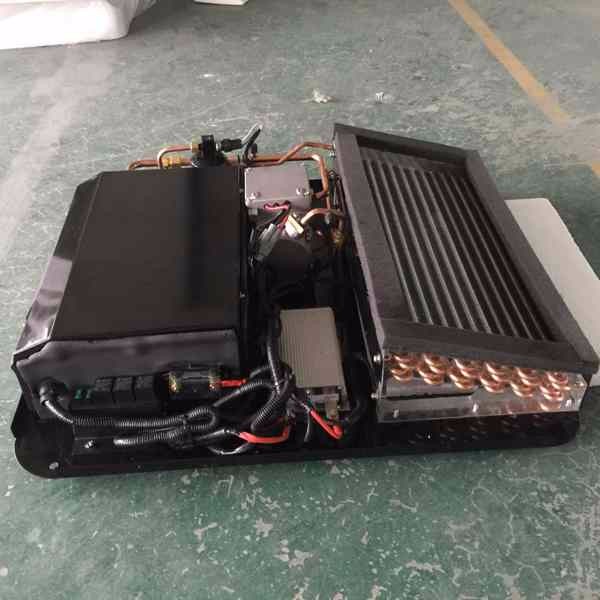

P-20B is powered by DC battery , with electric compressor packed in the roof unit . Easily be installed (within one hour) , no need to install the compressor near by the vehicle engine . After engine stopped working , the AC unit can work 3-4 hours continuously . It received praise from customers around the world, especially construction machine with P20B air conditioner can work under 50 Deg. C ambient temperature .

DC Powered Roof Mounted Electric Truck Air Conditioner:

Advantages of DC Powered Roof Mounted Electric Truck Air Conditioner:
♦ Roof Top mounted design
♦ Fuel Saving , Environment Friendly .
♦ The air conditioner can be installed in any vehicle that has a closed cabin .
♦ Low cost and low maintenance start from high-quality interior components and unique technique we take.

Technical Data of DC Powered Air Conditioner :

Model		P-20B
Installation		Roof top mounted
Cooling Capacity		2000W
Driven Mode		Battery driven
Voltage		DC12V	DC24V
Total current (A)		60A	30A
Evaporator Air Flow		900 m3/h
Condenser Air Flow		2000 m3/h
Compressor		Electric compressor 15cc
Dimension		900795200mm
Pressure Protection	High Pressure	2.65MPa
	Low pressure	0.02MPa
Refrigerant		R134a
Application		Truck, Trailer, Motor home , Caravan, Construction Vehicle , Tour Vehicle
