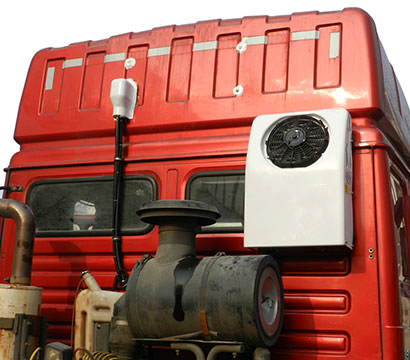

12V/24V Battery-powered truck A/C design for keep cabin cooling without idling engine when parking .
Advantages of P-20A Electric Truck Air Conditioner:
♦ Protect Environment : The truck engine is off but the ac units keep on cooling when parking or stopped for loading cargo , no emission . At the same time , save the fuel and cost .R134a gas which meets all ozone protection requirements
♦ Get a comfortable sleeping or rest: Without noise and emission, the driver of the truck can sleep or rest in a cooling, comfortable, peace, healthy and safe environment.
♦ Have a perfect journey on road: Soft starting , low maintenance,less the risks during drive time by reduce the stress of vehicle and tiredness of truck and driver.
♦ Easy to install: Back mounted and save space ,compact and humanized design to reduce the installation difficulty, finish it within one hour .
♦ Automatic protection: electric air conditioning have low voltage power protection function to ensure sufficient power to start the engine.
| Model | P-20a | ||
| Cooling Capacity | 2000W | ||
| Voltage | DC12V | DC24V | |
| Total current (A) | 60A | 30A | |
| Evaporator Air Flow | 900 m3/h | ||
| Condenser Air Flow | 2000 m3/h | ||
| Compressor | Electric compressor 15cc | ||
| Dimension | Evaporator | 626*260*108mm | |
| Condenser | 700*488*188mm | ||
| Pressure Protection | High Pressure | 2.65MPa | |
| Low pressure | 0.02MPa | ||
| Refrigerant | R134a | ||
| Application | Trucks,trailer,tractor,crane, excavator，commercial vehicles, etc. | ||
