Centrifugal Fan for ac units
The centrifugal fan is one of the most widely used fans. Centrifugal fans are by far the most prevalent type of fan used in the HVAC industry today. They are often cheaper than axial fans and simpler in construction. They are used in ventilation systems for vehicles. They are also well-suited for industrial processes and air pollution control systems.
Share With:
Product Description

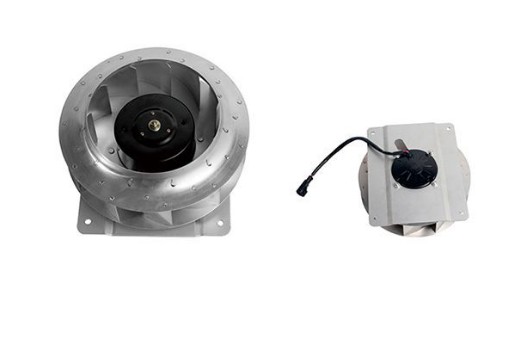

AC parts Centrifugal Fan for ac units:
Most of the air conditioners use centrifugal fans. The use of centrifugal fans allows the air conditioner to achieve maximum value.
This also greatly increases the use and scope of the fan.
Centrifugal fan is a mechanical device for moving air or other gases. These fans increase the speed and volume of an air stream with the rotating impellers.
Centrifugal fans use the kinetic energy of the impellers to increase the volume of the air stream, which in turn moves them against the resistance caused by
ducts, dampers and other components. Centrifugal fans displace air radially, changing the direction (typically by 90°) of the airflow. They are sturdy, quiet, reliable,
and capable of operating over a wide range of conditions.
Auto AC Spare Parts -- Centrifugal Fan for ac units:

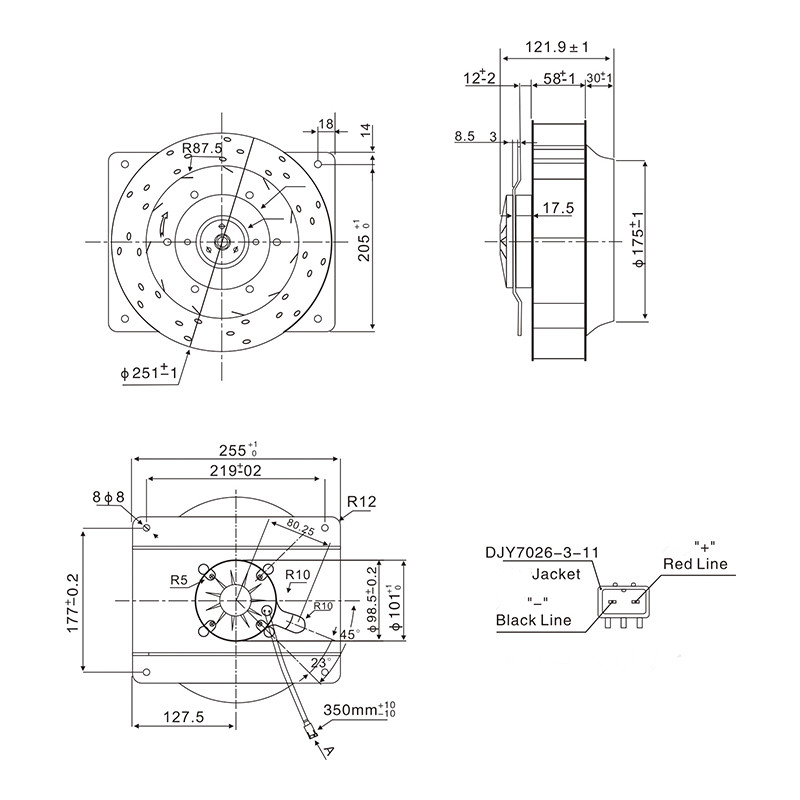

Specification of Fan
Rated Voltage DC24v
Load Current ≤9A
Load Speed ≥2500rpm
Static Pressure 0Pa
Air Volume ≥700m³/h
Noise ≤75dB(A)
Vibration ≤3.5m/s²

The impeller of the centrifugal fan is covered with a mechanical outer casing, and the center of the impeller is an air inlet.
When the centrifugal fan is working, the power equipment runs to drive the impeller to rotate, and the air is sucked from the air inlet.

During the rotation of the blades of the centrifugal fan, a force is applied to the gas to increase the pressure and speed of the gas,
and the gas is discharged from the exhaust port along the blade channel under the action of centrifugal force.
